Turtle Hard Drive Case For 20 3.5″ Drives

Description

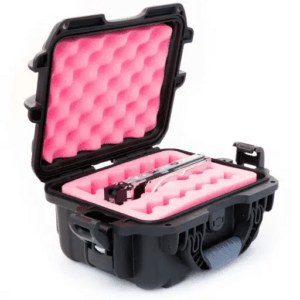

This heavy duty waterproof case has an anti-static foam insert designed to hold 20 “bare” 3.5″ hard drives. Slot size: 5.5″x 5.0″x 1.0″. See photos for bare hard drives versus drives in sleds.

Turtle Cases for Hard Drives and Flash or SSD Drives are engineered specifically to protect digitally recorded information. Precision cut anti-static foam in a heavy duty, waterproof case provides data management professionals with confidence and the peace of mind they demand when transporting or storing high value data.

Product Features and Benefits

Precision cut foam holds drives securely

Pink foam dissipates static charges

Heavy duty construction – crushproof

Stainless steel hardware prevents rust

Double movement latches prevent accidental opening

Ergonomic, easy to grip handle

Made in North America

ATA Impact Certified

Double padlockable

Lifetime warranty

Product Specifications

Weight: 7.2 lbs

Inside Dimensions: 18.0″ x 13.0″ x 6.9″

Outside Dimensions: 19.8″ x 16.0 x 7.6″

Slot Dimensions: 5.5″ x 5.0″ x 1.0″

Shipping dims: 20″ x 17″ x 8″

Shipping weight: 10 lbs

Compatible Locks

Turtle Lock – 5020

Turtle Lock – TSA

Certifications

Waterproof IPX7

Dustproof IP6X

Impact ATA 300

Drop Test ASTM D-4169 CC-18

Vibration STM D-4169 DC-18

Rainfall ASTM D-4169 DCc-18

Immersion MIL-STD-810F

Descriptions of Tests

ATA Specification 300 Category 1

Airline transport container suitable for a minimum of 100 airline trips

Impact Resistance Test; samples were exposed to impact using a bar weighing 13.2lbs with a hemispherical end of 3.2cm. Bar was dropped with its longitudinal axis vertical on to each sample’s weakest point from a height of 0.5m. Samples were conditioned to a temperature of -20°C before impact exposure.

ASTM D-4169 DC-18

Level 1 Schedule A Handling (Manual)

Drop tests – a series of drops on each edge, corner and face of the case from a height of no less than 48cm(19”) and with loads of 6.8-31.8kg(15-70lbs) determined by case size. Samples were conditioned at lab ambient conditions and then temperatures of -28°C and +60°C for a minimum of 3 hours at each condition.

ASTM D-4169 DC-18

Level 1, Schedule F loose load vibration

Vibration – The cases are tested using test method D-999 to determine the ability to withstand the repetitive shocks occurred during transportation of loose loads.

ASTM D-4169 DC-18

Level 1, Schedule H Environmental Hazard Rainfall

Simulated rainfall for 2hrs at a rate of 10cm/hr (4”). Samples were conditioned to -20 degrees C and +52 degrees C.

MIL-STD-810F

Method 512.4

Immersion – The case is submerged in a basin of water to a depth of 1 meter (3.28 ft) to the top most part of the case for 30 minutes. The case is heated to 10 degrees F higher than the temperature of the water.

IP 67 ingress protection

6- Total protection from dust

7- Protected against the effects of immersion between 15cm (5.9”) and 1m (39.37”)
